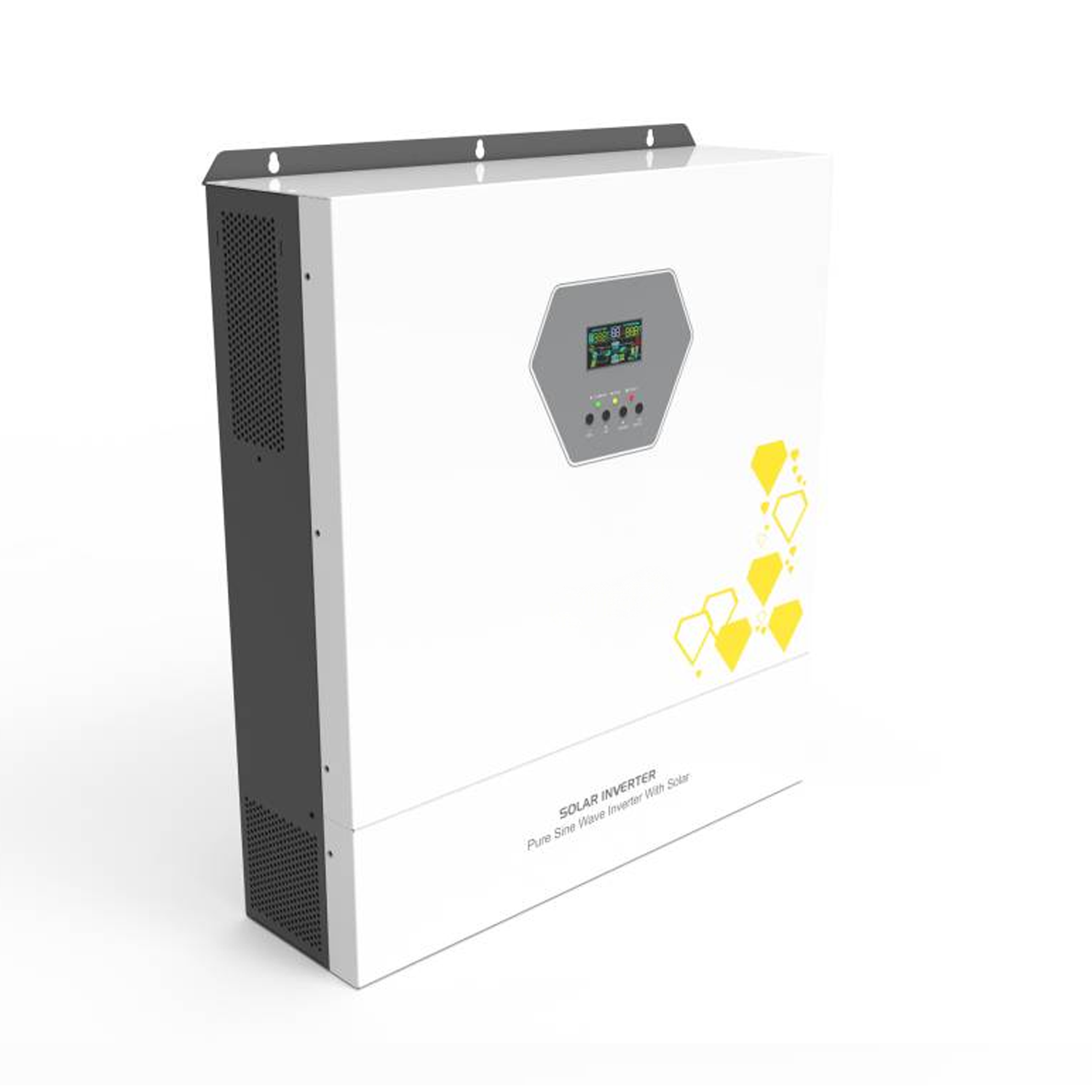

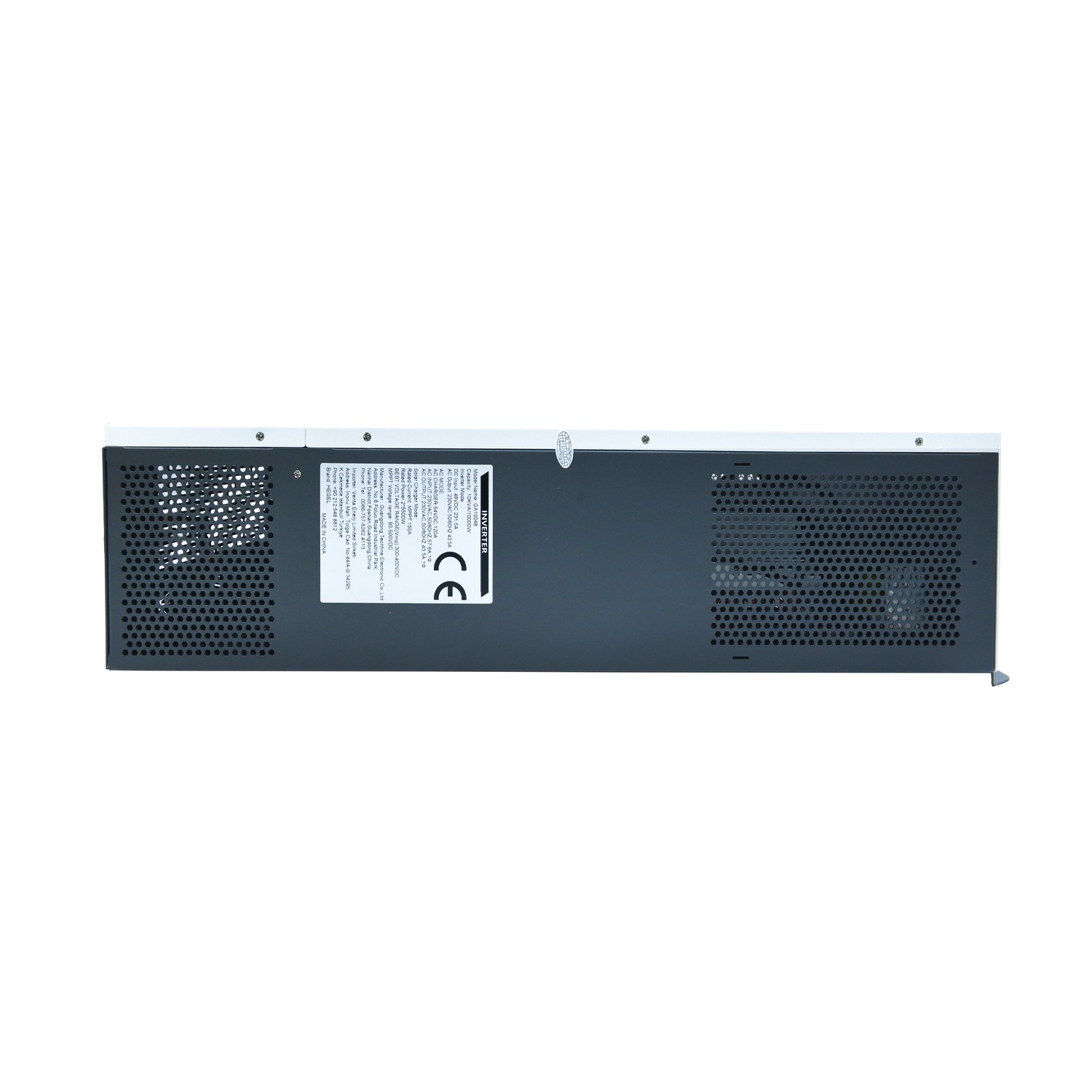

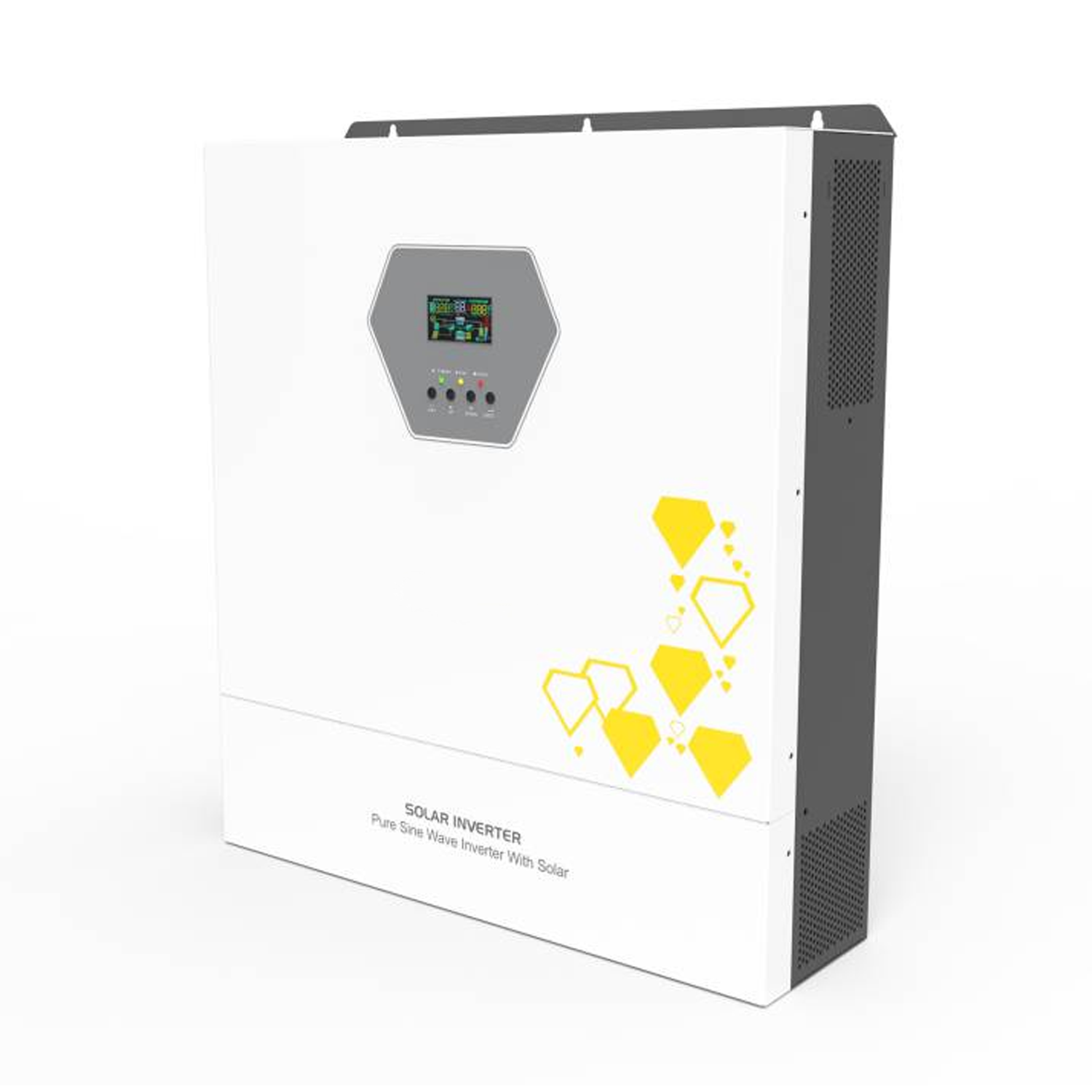

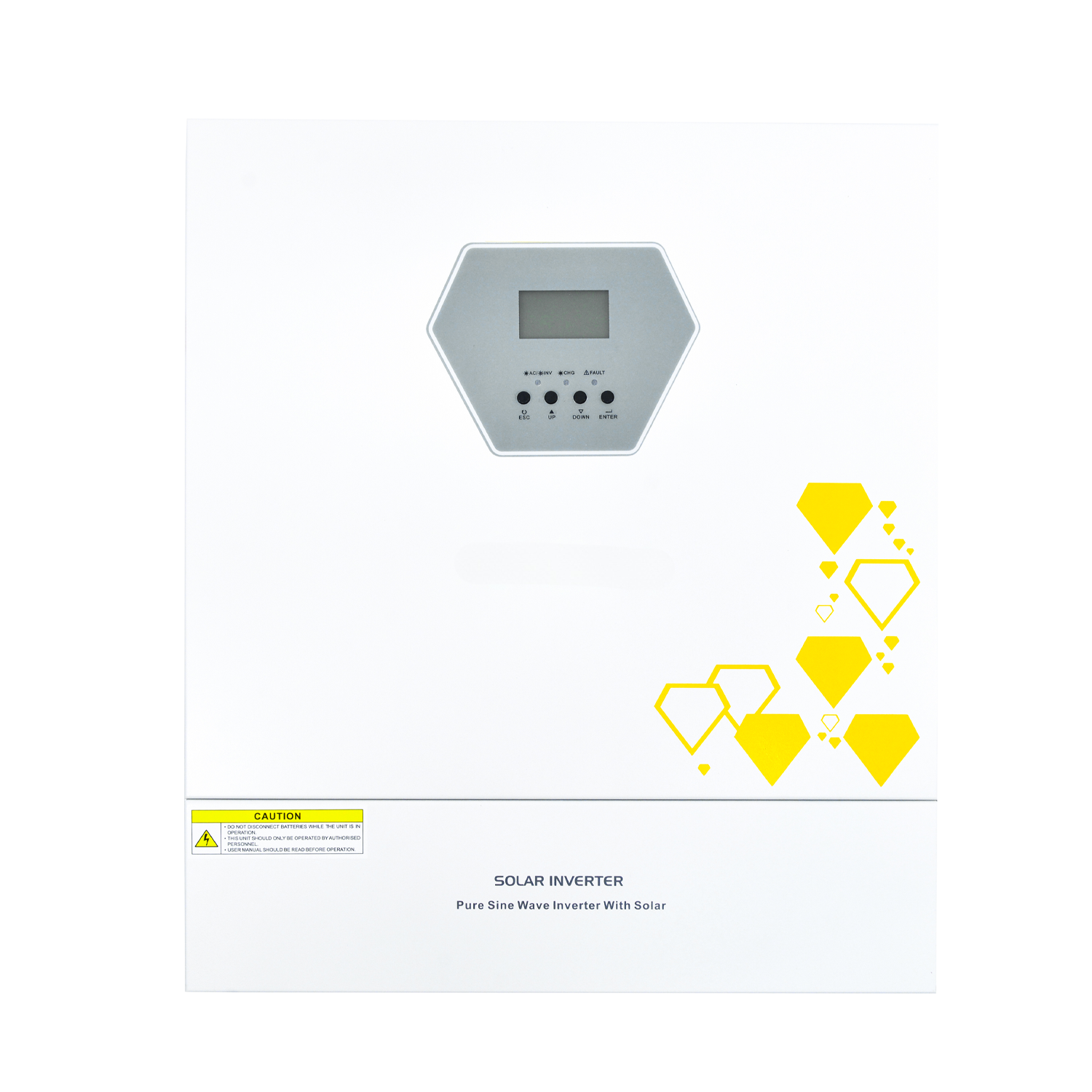

11000W SOLAR INVERTER GD PRO+ SERIES

1. BMS communication function.

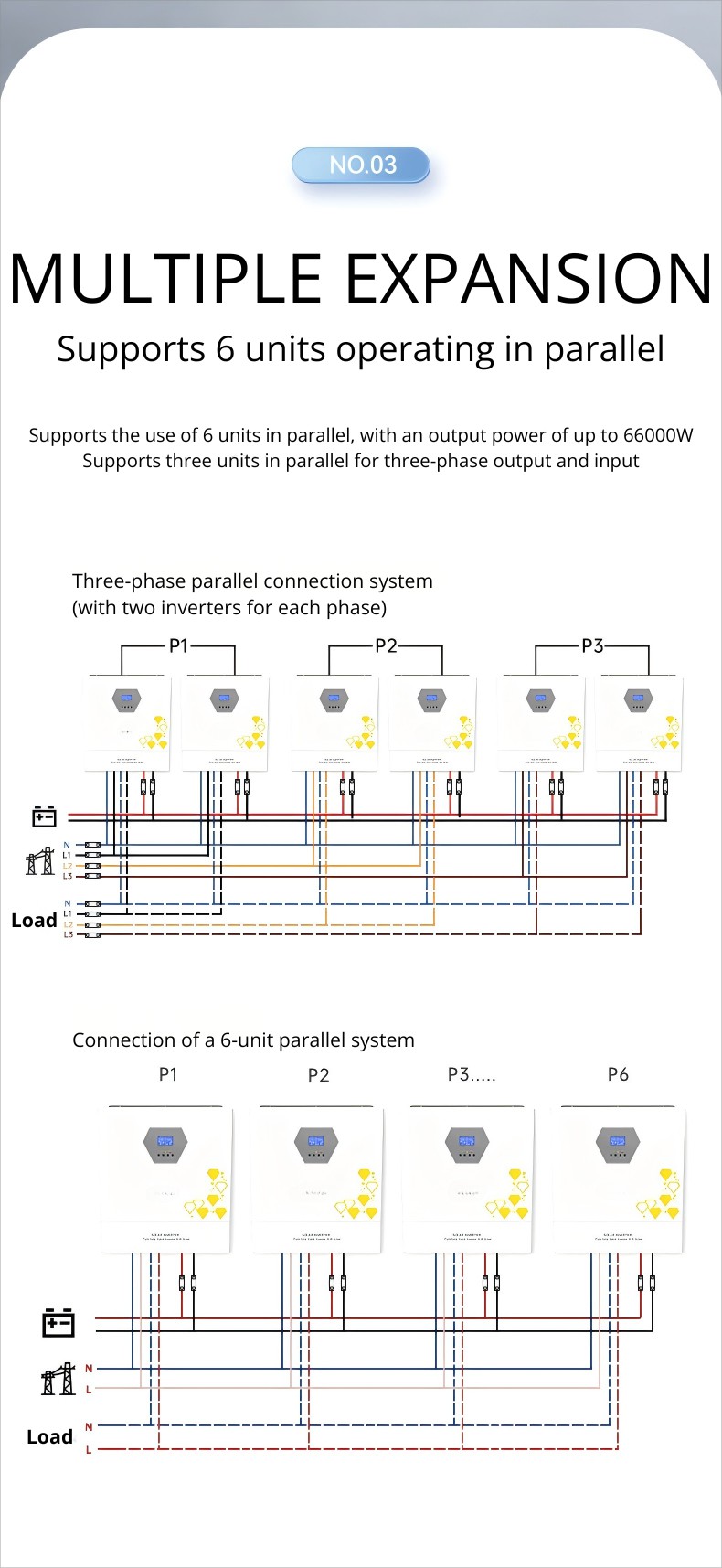

2. Supports multiple units in parallel.
3. Battery-free startup.
4. Supports three-phase parallel connection with three-phase input and output.
5. Dual PV input.

Hybrid Solar Inverter

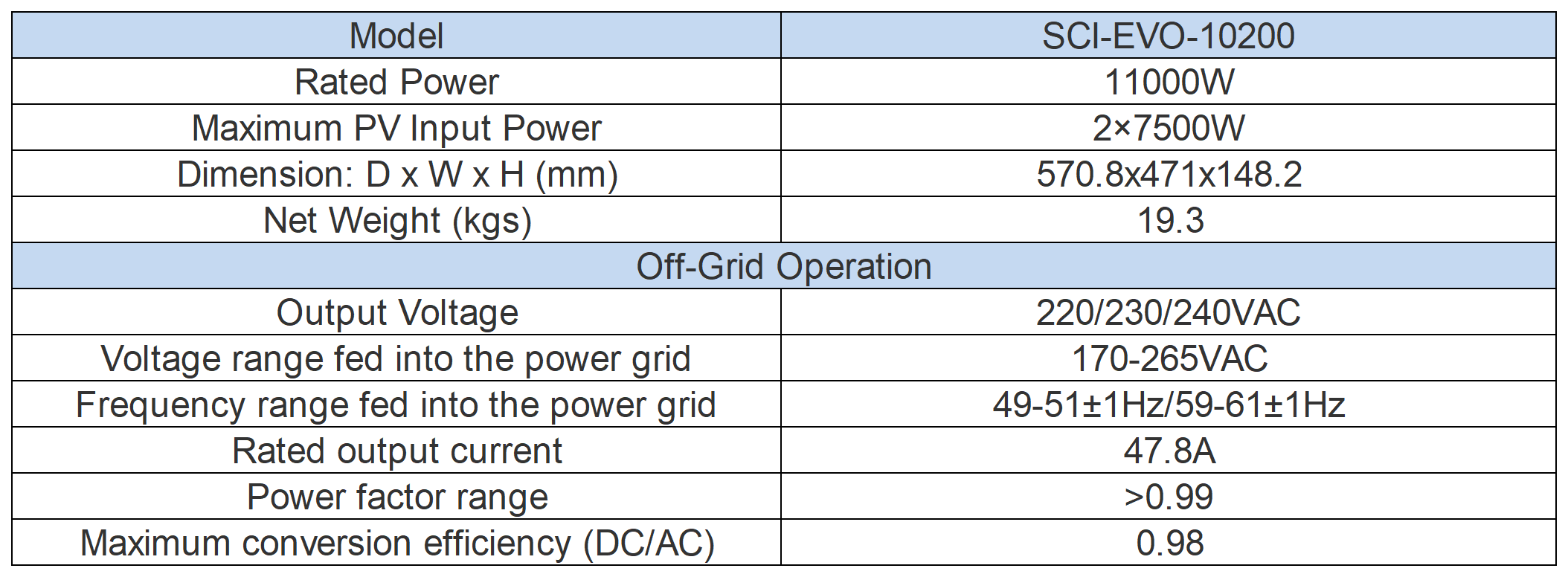

Designed specifically for industrial and commercial use as well as large off-grid systems, with a rated power of 11kW, photovoltaic inverter of 12kW, and a peak capacity of up to 22kVA. It supports wide voltage input (90-280VAC) and 50/60Hz adaptive, and is compatible with global power grids. It adopts dual-path MPPT intelligent tracking technology, with a maximum photovoltaic input of 15kW (2×7500W), and a conversion efficiency of up to 98%. It outputs pure sine waves, is compatible with sensitive equipment, supports dual modes of battery inverter (11kW) and photovoltaic inverter (12kW), and has graded overload protection (with segmented response ranging from 105% to 200%).

Application scenarios: Grid-connected power generation for industrial and commercial use, large off-grid energy storage systems, emergency power sources, and high-load industrial scenarios.




Hybrid solar inverters boast dual PV inputs and dual AC outputs, ensuring the stability of the load. With WIFI Communication, remote monitoring of the inverter's operating status via a terminal device is made possible, guaranteeing the smooth operation of the entire system. These inverters also feature a newly developed LCD display with a Touch button function, enhancing user convenience and exuding a more premium appearance. Boasting a maximum power of up to 11000W, they are equipped with advanced electronic components and cutting-edge control technology. This enables efficient power conversion and stable power output, meeting higher power demands. Thus, they serve as the perfect solution for off-grid standby power supply for families and small businesses.
