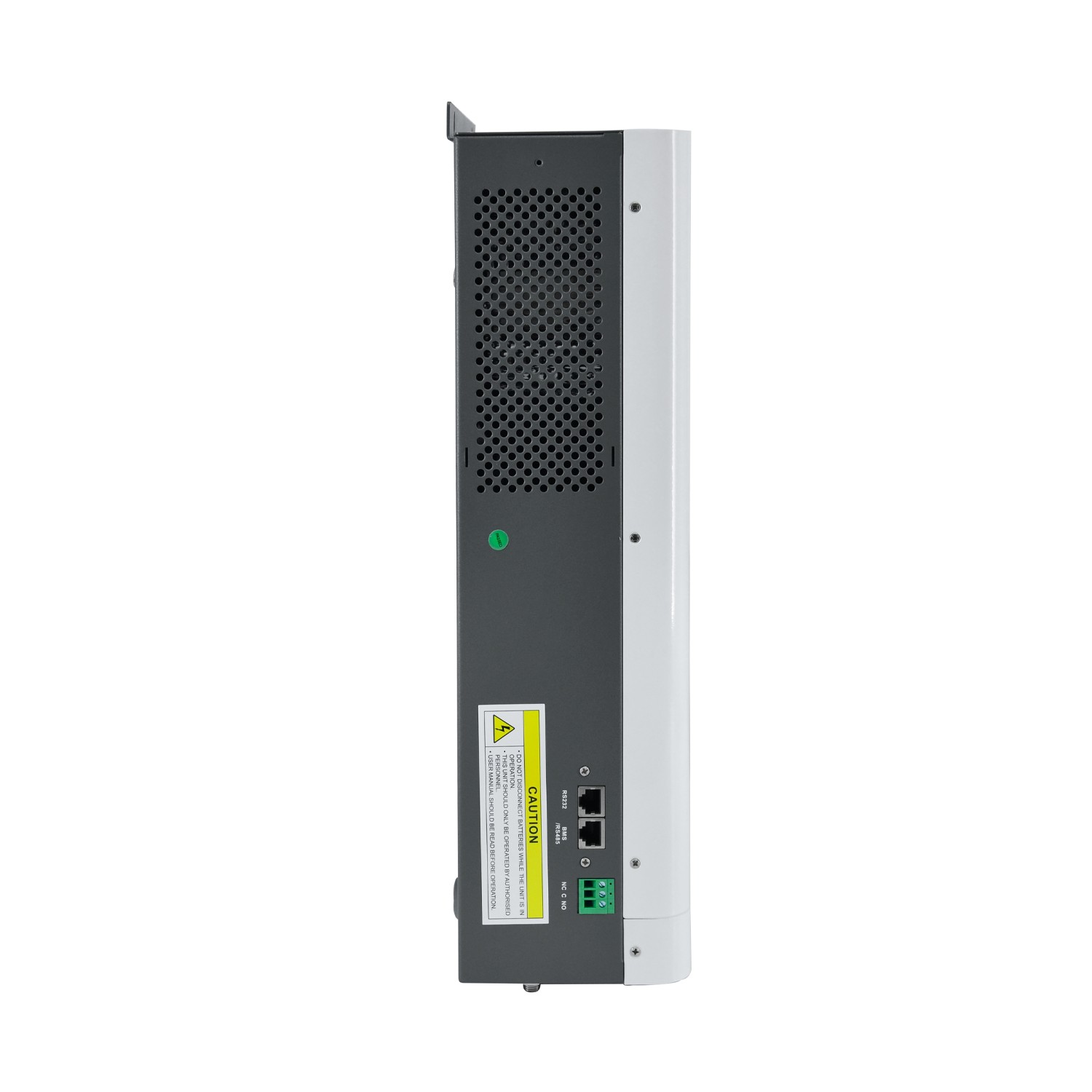

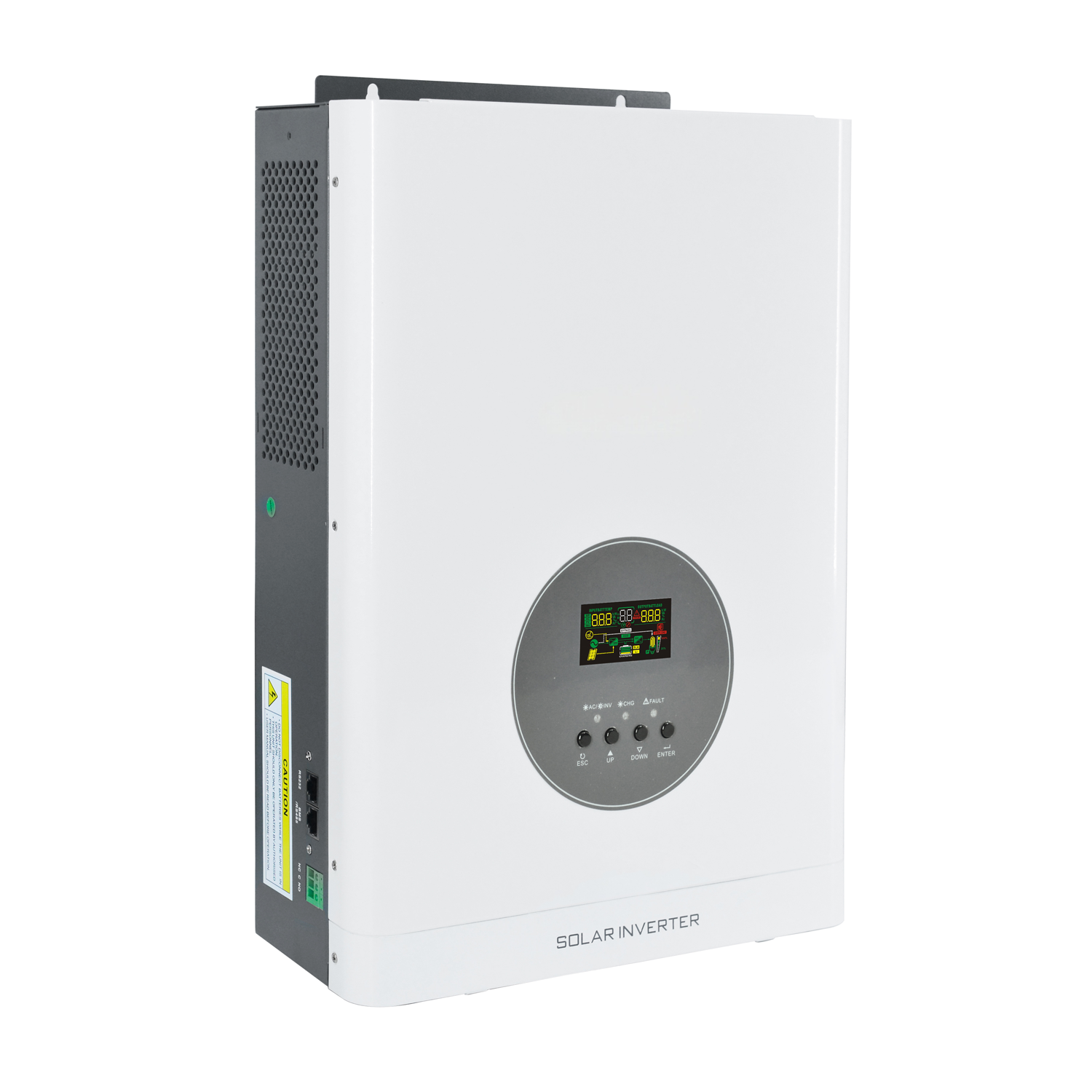

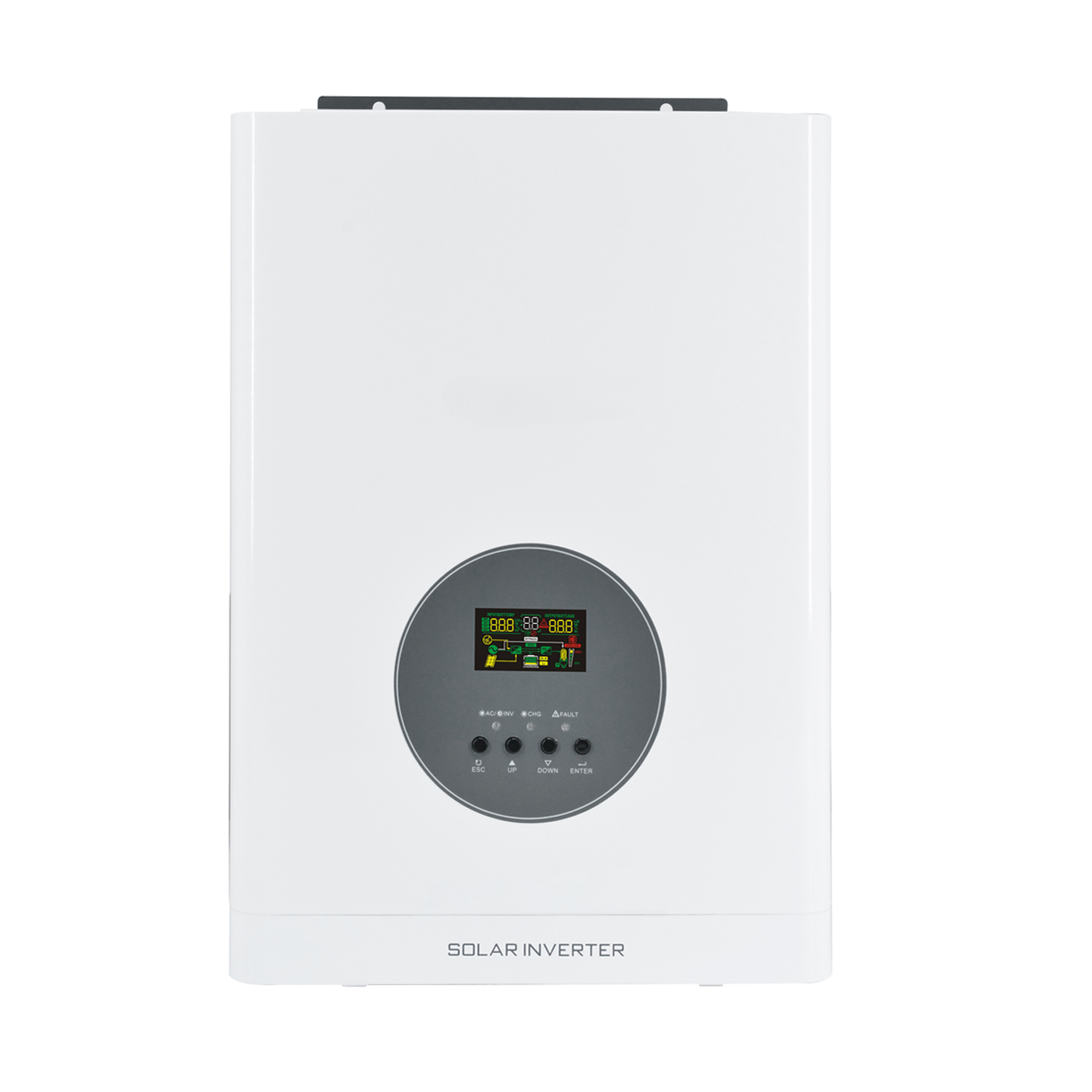

1600W-4000W SOLAR INVERTER UD SERIES

1. Premium Energy Efficiency

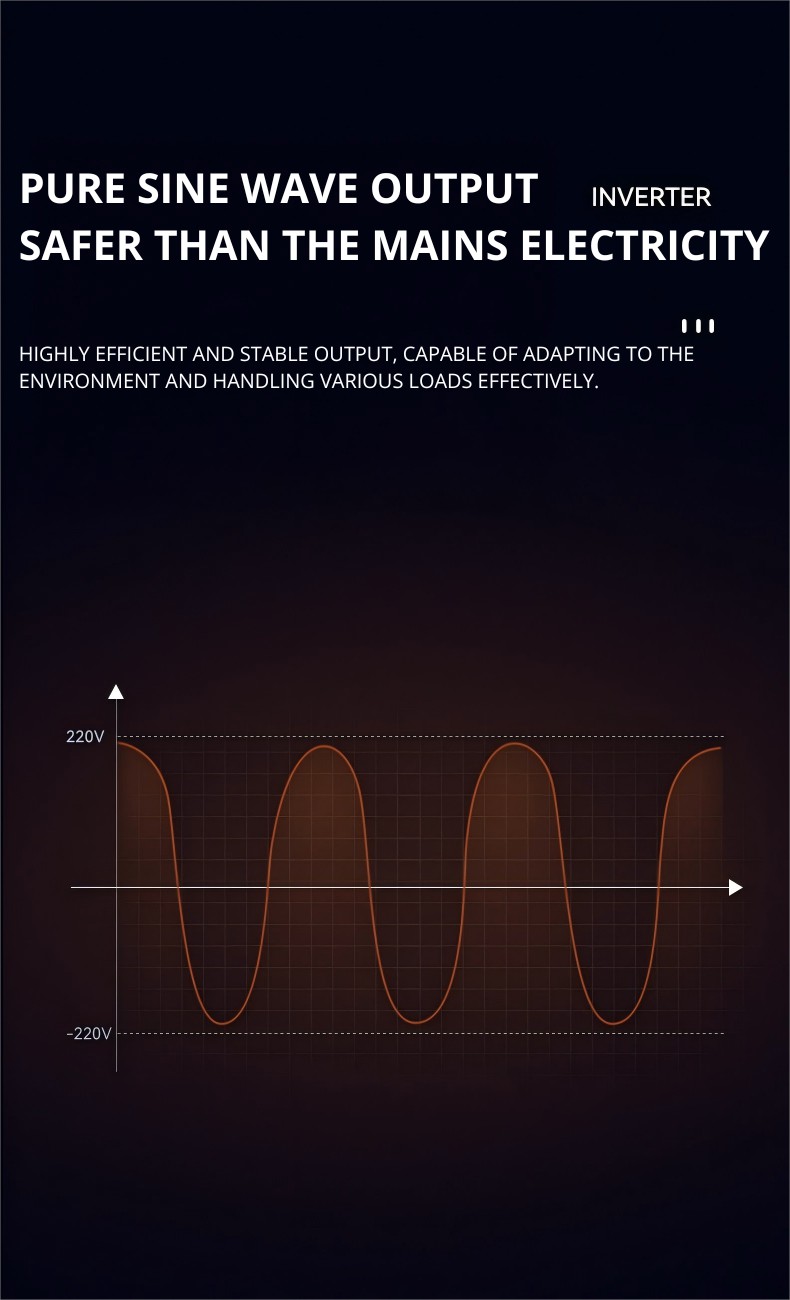

2. Pure Sine Wave Output & Load Adaptability
3. Advanced Safety & Customization
4. Solar & Smart Grid Integration

Hybrid Solar Inverter

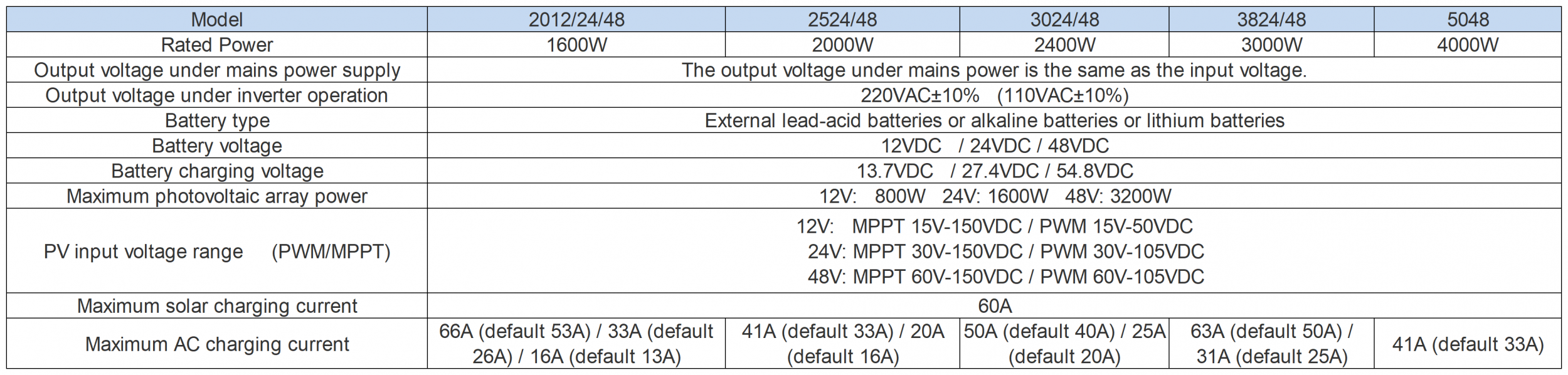

With a power range of 1.6kW to 4kW, it is suitable for household, small commercial and off-grid energy storage scenarios. It supports battery voltages of 12V/24V/48V, and is compatible with lead-acid/battery cells. The maximum photovoltaic charging current is 60A, and it supports dual charging modes of PWM/MPPT (with MPPT having higher efficiency). The input voltage is flexible (110V/220V adaptive), and the inverter output is 220VAC ±10% or 110VAC ±10%, with a frequency of 50/60Hz ±1%. It provides pure sine wave compatible with sensitive devices.

Application scenarios: off-grid energy storage for households, outdoor emergency power supply, small photovoltaic power stations, vehicle/ship power supply systems.

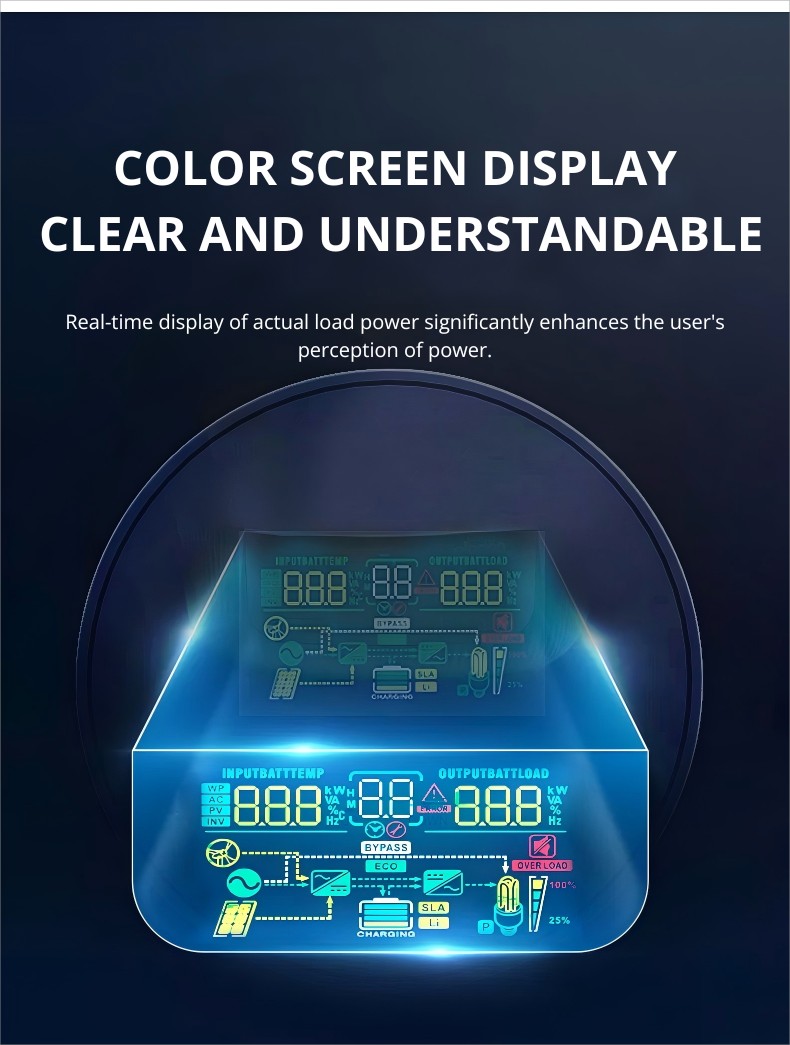

Hybrid solar inverters boast dual PV inputs and dual AC outputs, ensuring the stability of the load. With WIFI Communication, remote monitoring of the inverter's operating status via a terminal device is made possible, guaranteeing the smooth operation of the entire system. These inverters also feature a newly developed LCD display with a Touch button function, enhancing user convenience and exuding a more premium appearance. Boasting a maximum power of up to 1.6kw-4kw, they are equipped with advanced electronic components and cutting-edge control technology. This enables efficient power conversion and stable power output, meeting higher power demands. Thus, they serve as the perfect solution for off-grid standby power supply for families and small businesses.
