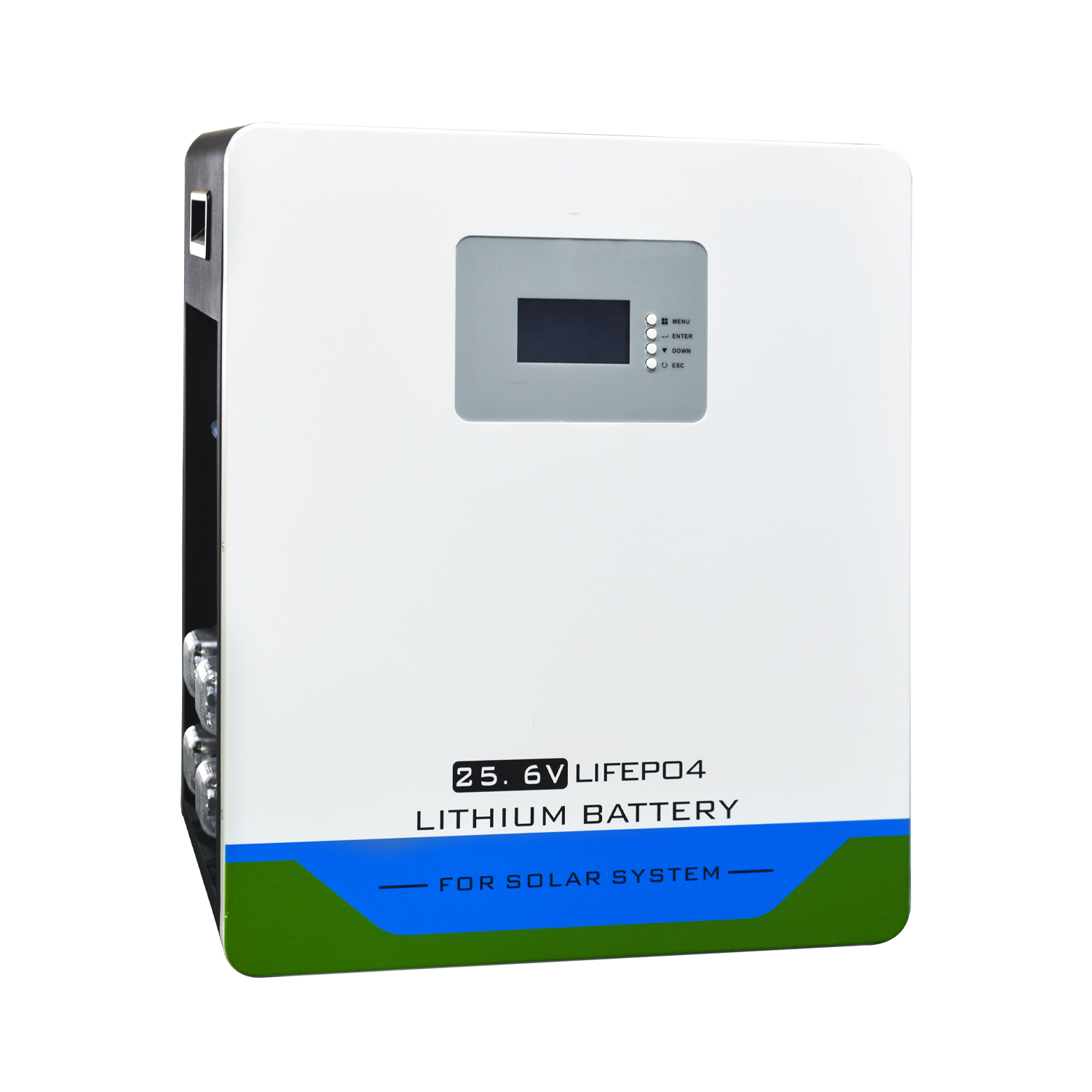

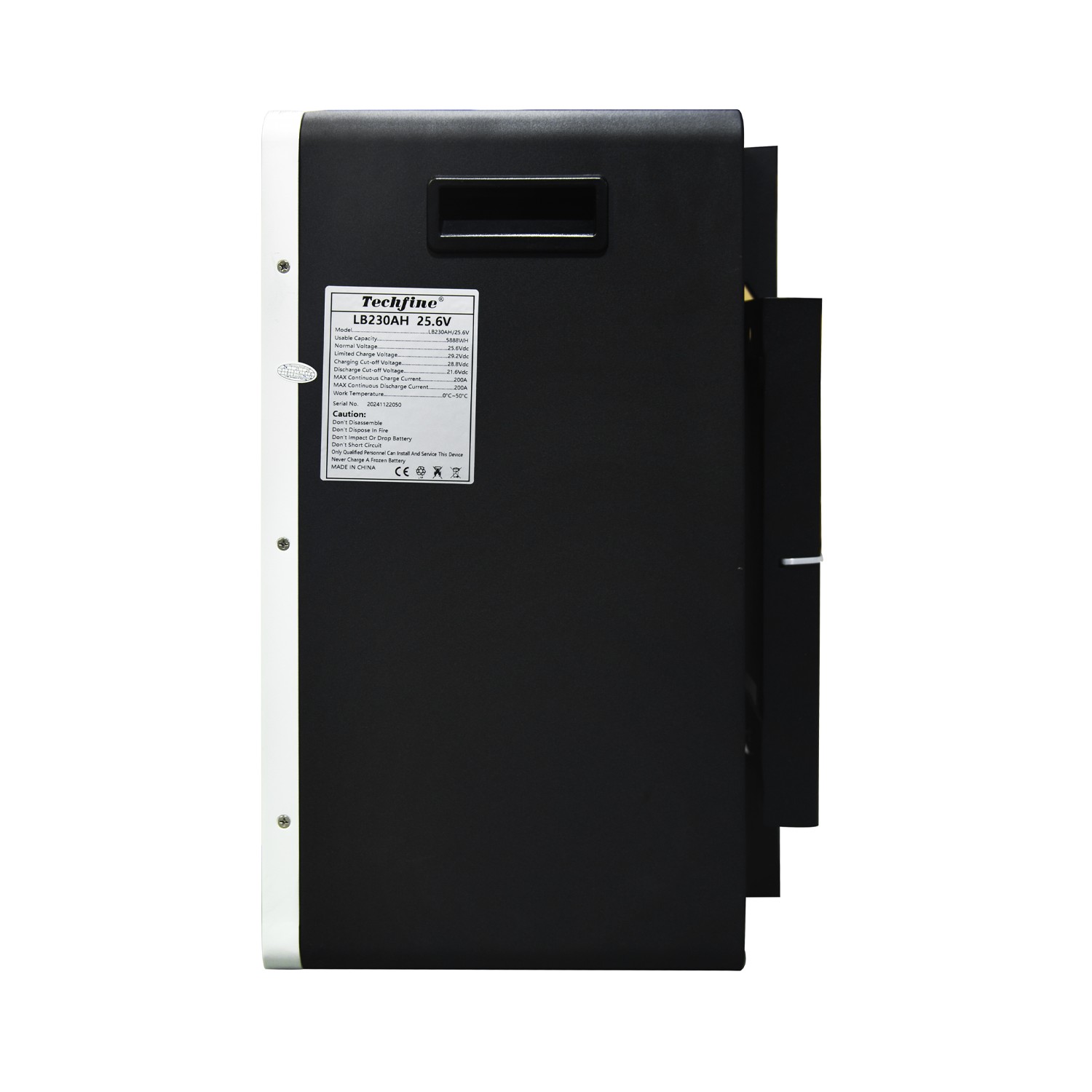

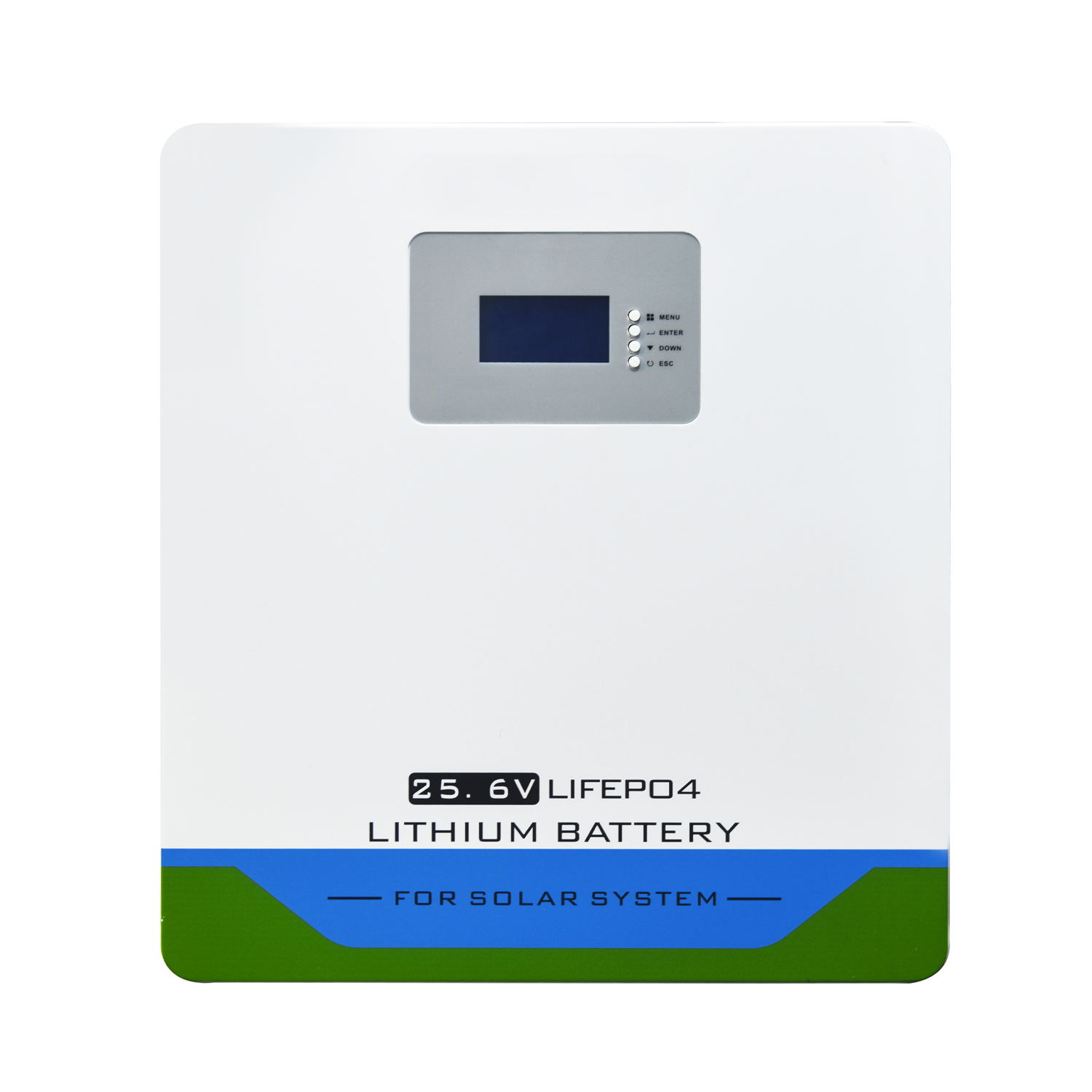

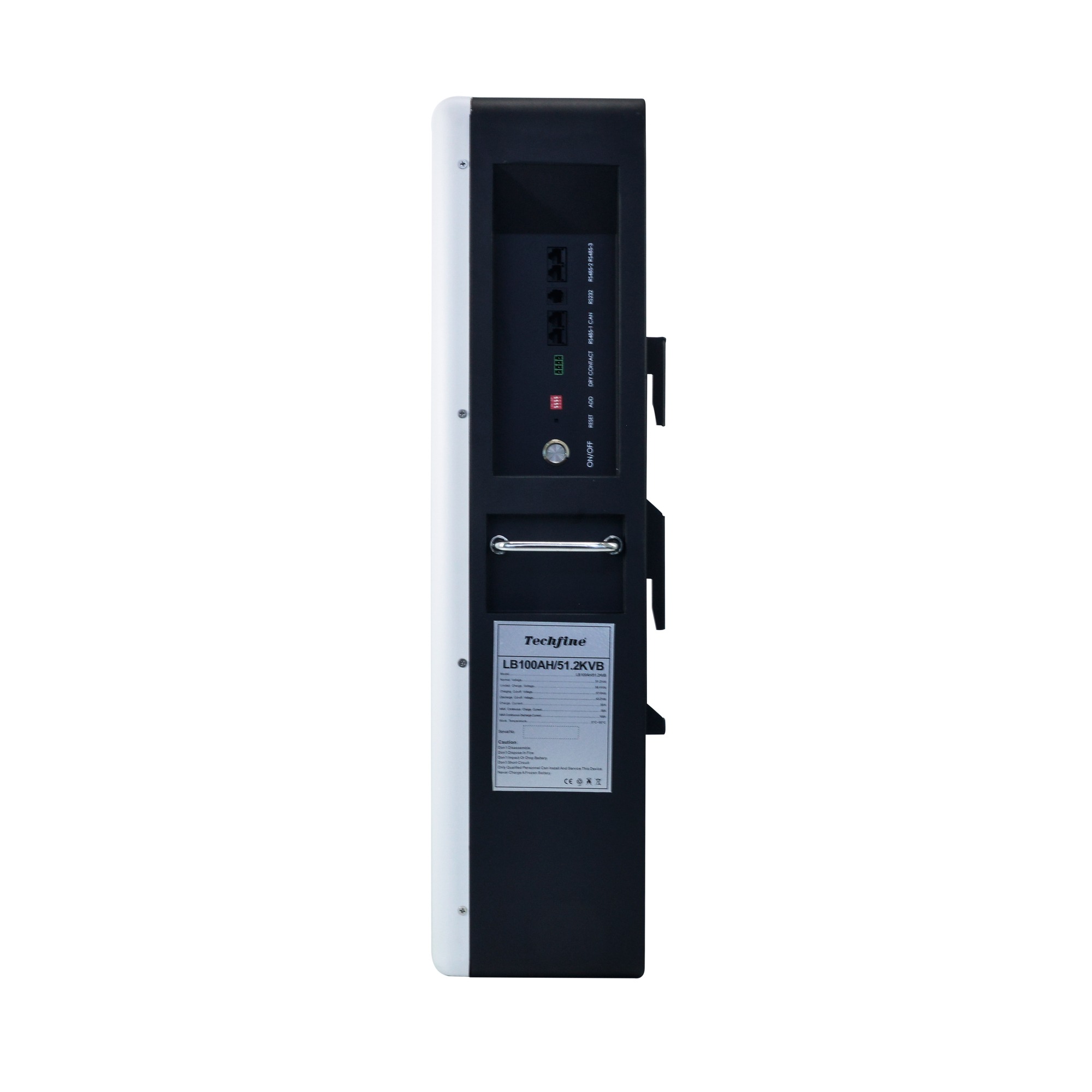

24V 48V Wall-Mount LiFePO4 Lithium Solar Battery

Solar Battery

1. High-Capacity Metal-Shell Design
2. Laboratory-Grade Monitoring Accuracy
3. Adjustable Protection Suite
4. Smart Communication Ecosystem
5. Advanced Analytics & Efficiency
6. Intuitive User Interface

Solar Battery

It covers a voltage range of 25.6V to 51.2V, with a capacity of 2.56kWh to 14.3kWh. It is specifically designed for household energy storage, off-grid photovoltaic systems and emergency power supplies. It uses LiFePO4 cells, with a cycle life of ≥5000 times (standard temperature charging and discharging), and supports 100A-200A high current charging and discharging, suitable for high-power loads.

Solar lithium batteries are crucial in solar power systems for energy storage, backup, and environmental protection. They feature a modular design, small size, and light weight. The LCD display shows battery operation parameters, and the LED indicator changes color based on the status for real-time monitoring. These batteries support multiple parallel connections and automatic address acquisition. With new A-grade lithium cells, they have a long lifespan of over 8 years. The BMS system offers 200A continuous overcurrent capacity, making them ideal for household solar energy solutions.

Parameters

Product Details

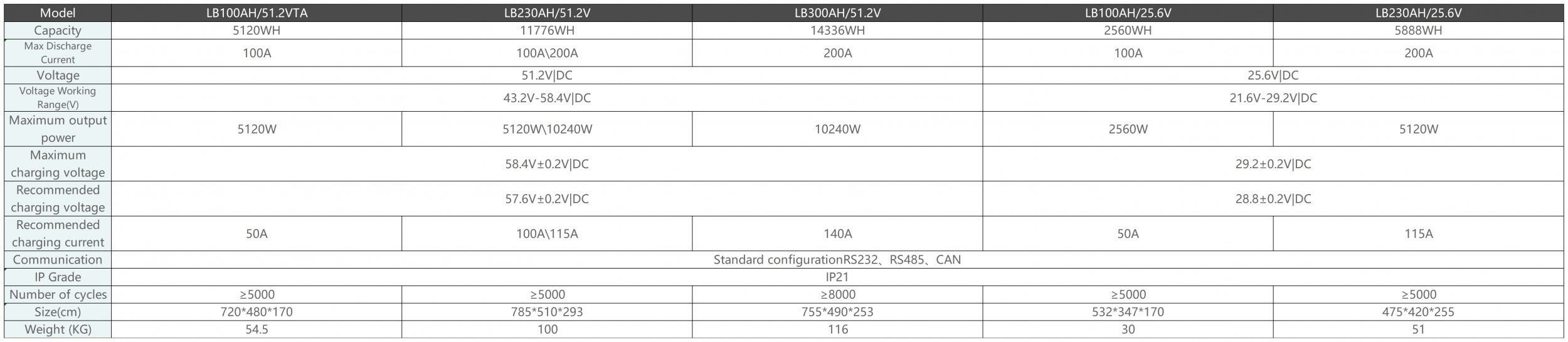

25.6V 51.2V LiFePO4 Lithium Solar Battery Parameter

Advantages of 25.6V 51.2V LiFePO4 Lithium Solar Battery

• Large-capacity, high-strength metal-shell lithium iron phosphate battery, with sufficient capacity.

• Function for estimating SOC (current battery storage status) and SOH (current battery health status).

• LED status indication function, and real-time LED display of SOC.

• Low power consumption, and multiple sleep and wake-up modes.

• Adjustable overcurrent protection, short-circuit protection, and buzzer alarm.

• High voltage accuracy (≤20mV), high current accuracy (≤2%@FS), and battery temperature detection (≤2℃).

• Parallel communication function, RS485 communication and upper computer monitoring function, as well as CAN communication.

• Charging equalization function.

• Battery group capacity and cycle count calculation function.

• Supports user modification of inverter communication protocol: most brands on the market are compatible.

New lithium battery

Adopts internationally renowned high-quality lithium iron phosphate batteries, which are suitable for long-term charge and discharge cycles, offering a cycle life of over 5,000 cycles and an operational lifespan exceeding 7 years.

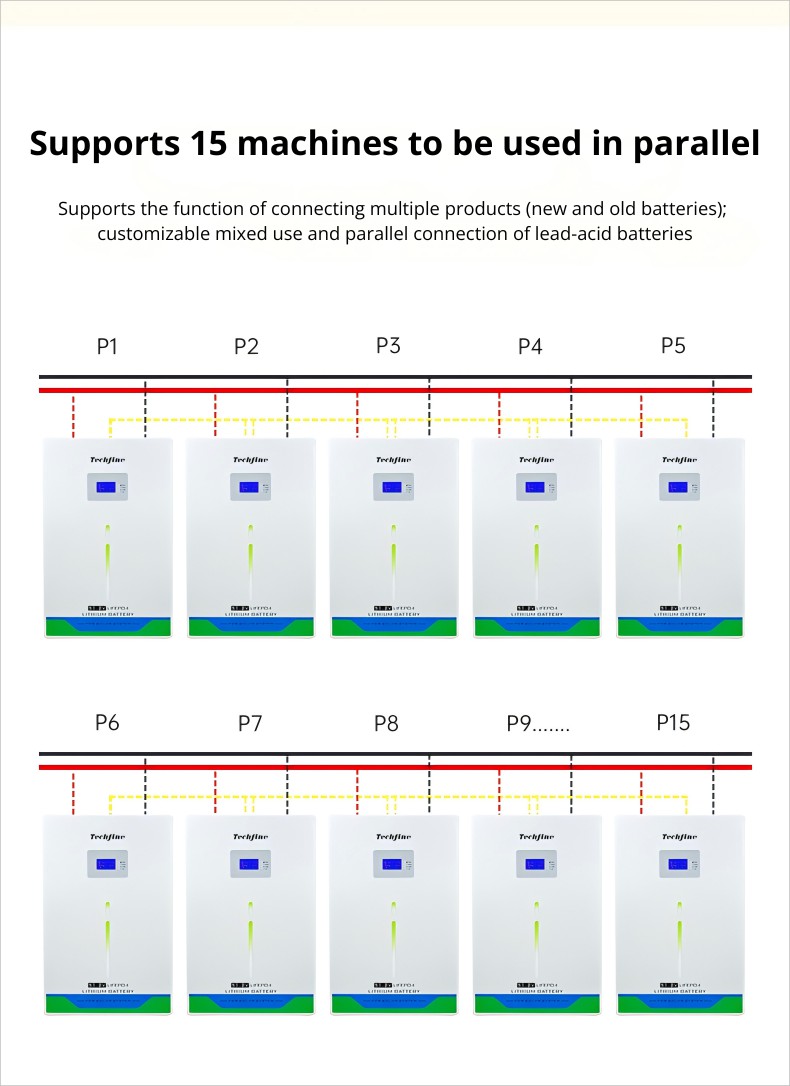

Supports 15 batteries in parallel

Implements multi-level energy management and supports multiple parallel connections of batteries to meet varying capacity requirements. The system enables automatic address acquisition for batteries, ensuring ease of installation and maintenance.

Smart BMS system

Utilizes internationally recognized brand components, enabling automated management and maintenance of each battery unit, real-time monitoring of battery parameters, and ensuring high system reliability.

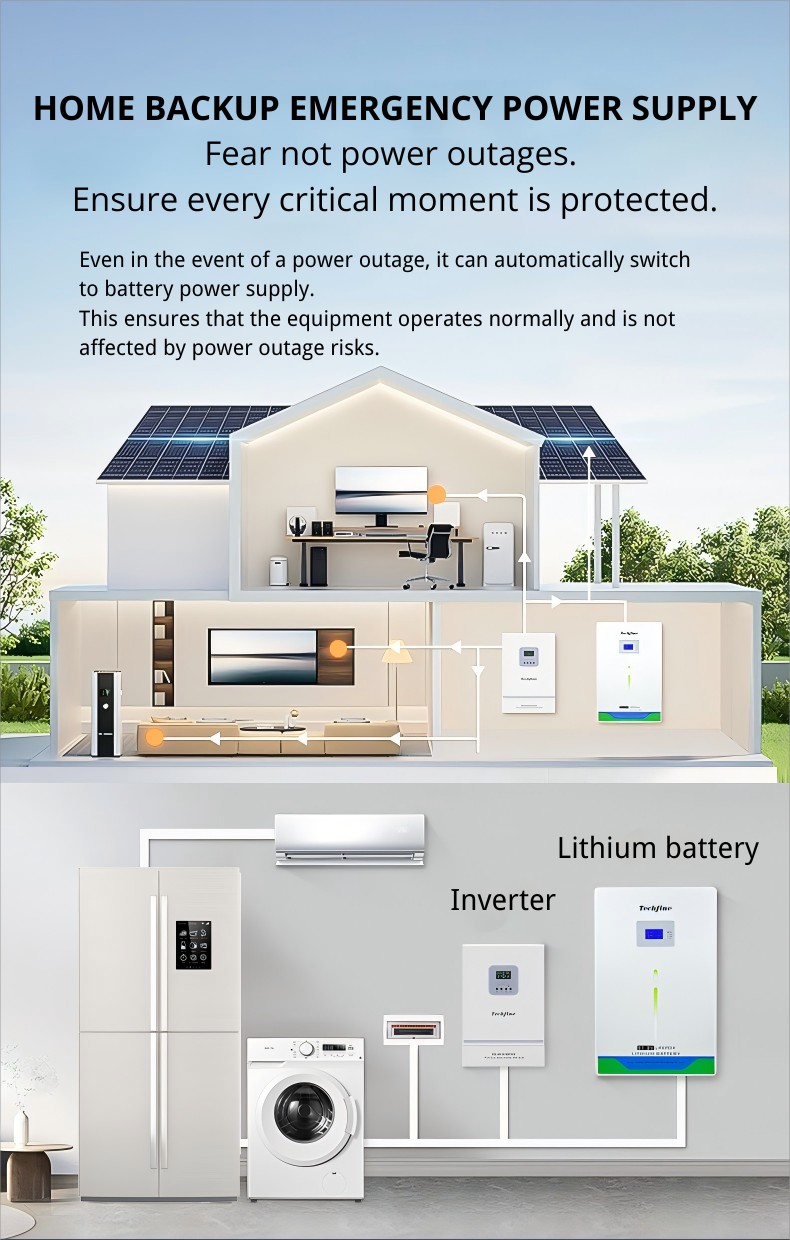

Application Of 25.6V 51.2V LiFePO4 Lithium Solar Battery

The Solar Energy Storage Battery, with its outstanding performance and remarkable energy density, has found widespread applications in diverse industries. Lithium-ion batteries, in particular, have emerged as an optimal choice for energy storage, enabling solar storage systems to efficiently store and discharge energy, thereby offering steadfast support to energy storage installations. Notably, when integrated into the photovoltaic domain, Lifepo4 Lithium Batteries can significantly enhance the operational efficacy of solar power systems, facilitating a harmonious balance between energy supply and demand.
