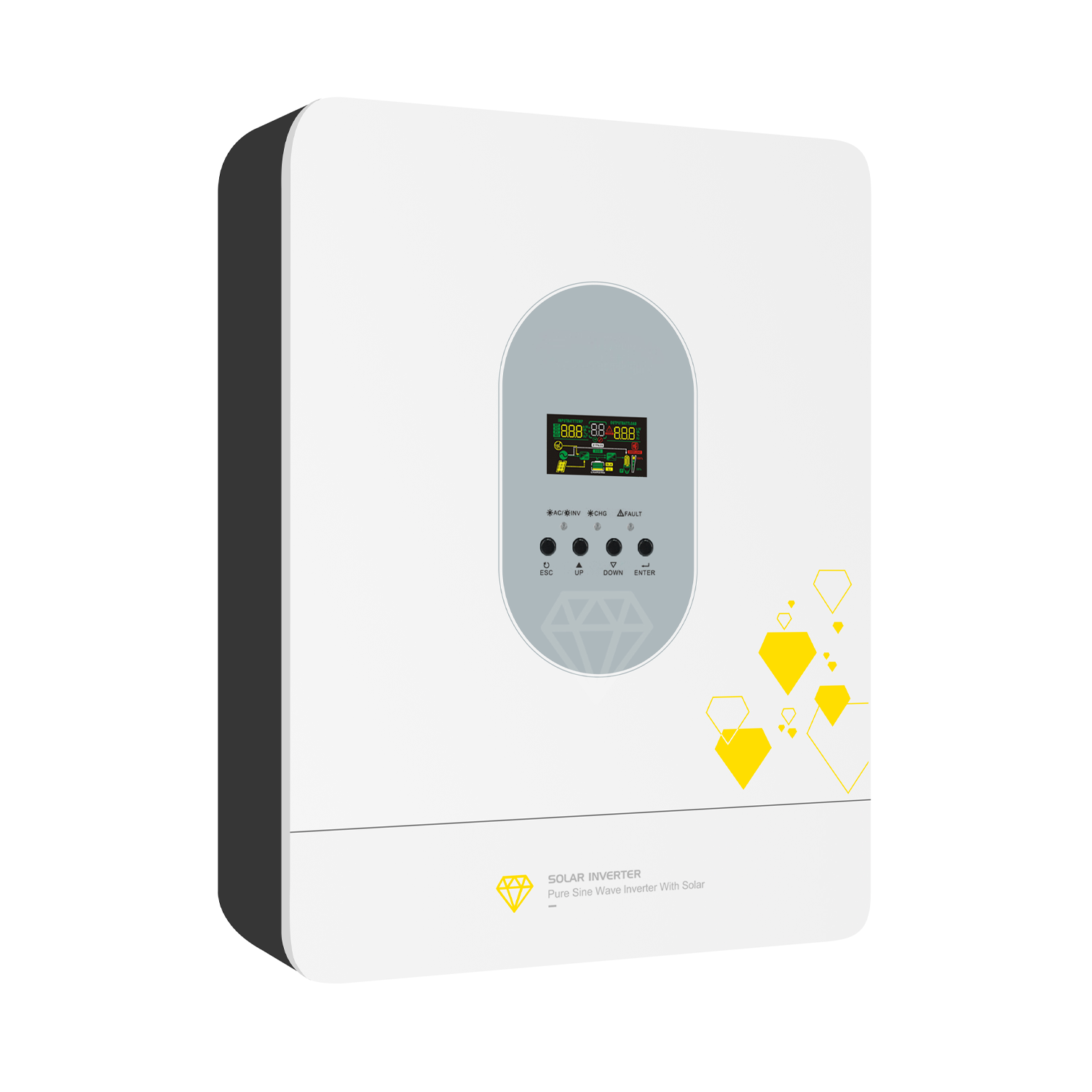

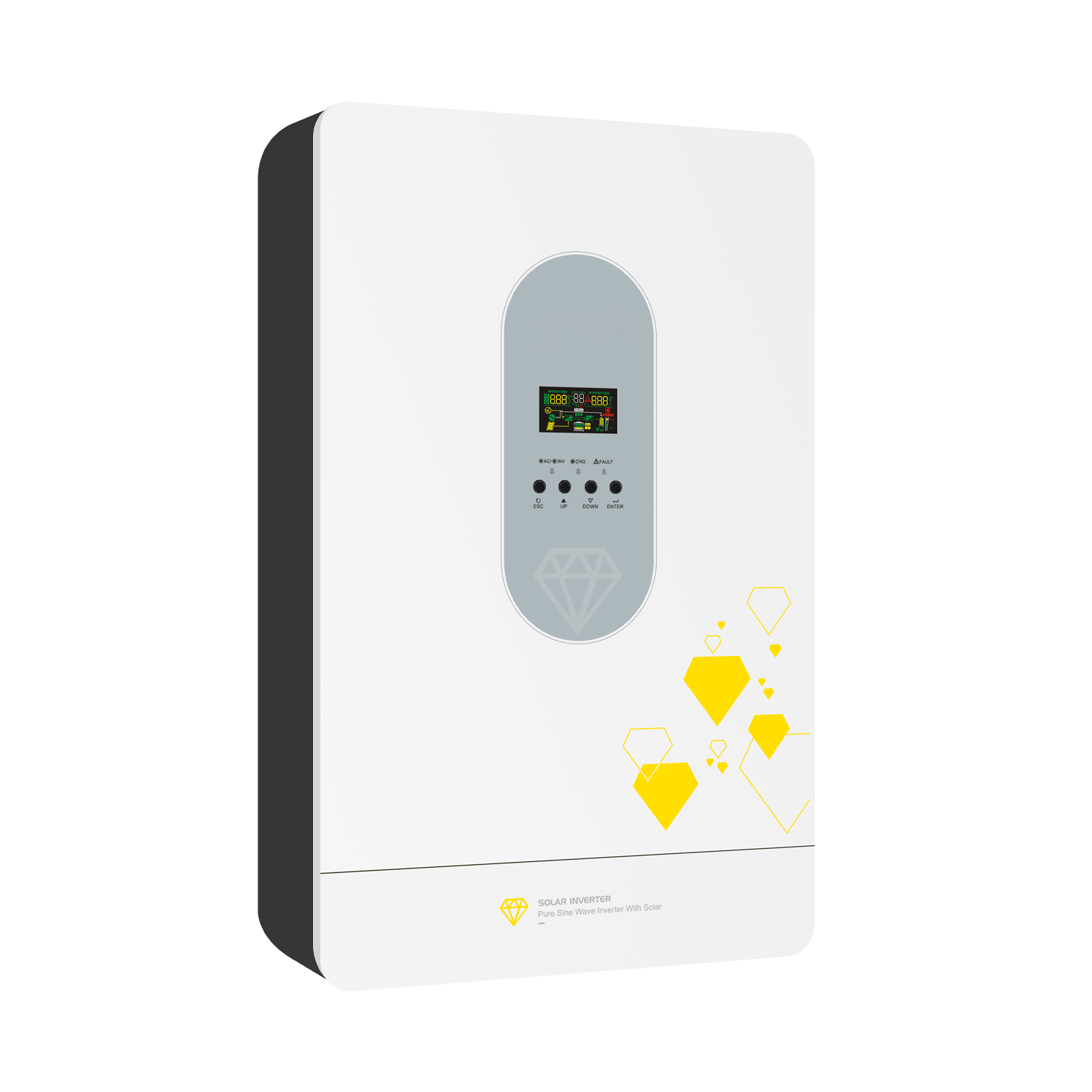

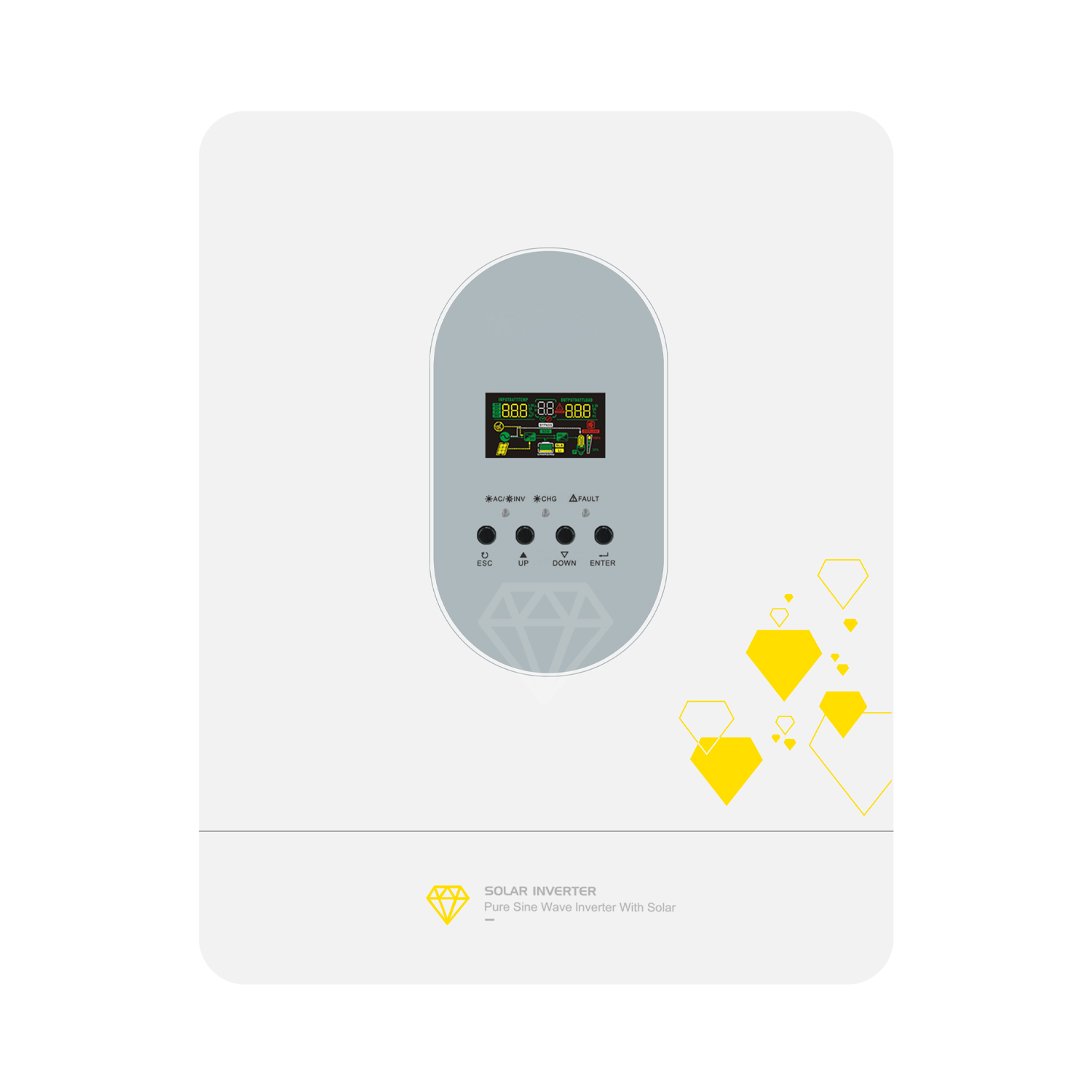

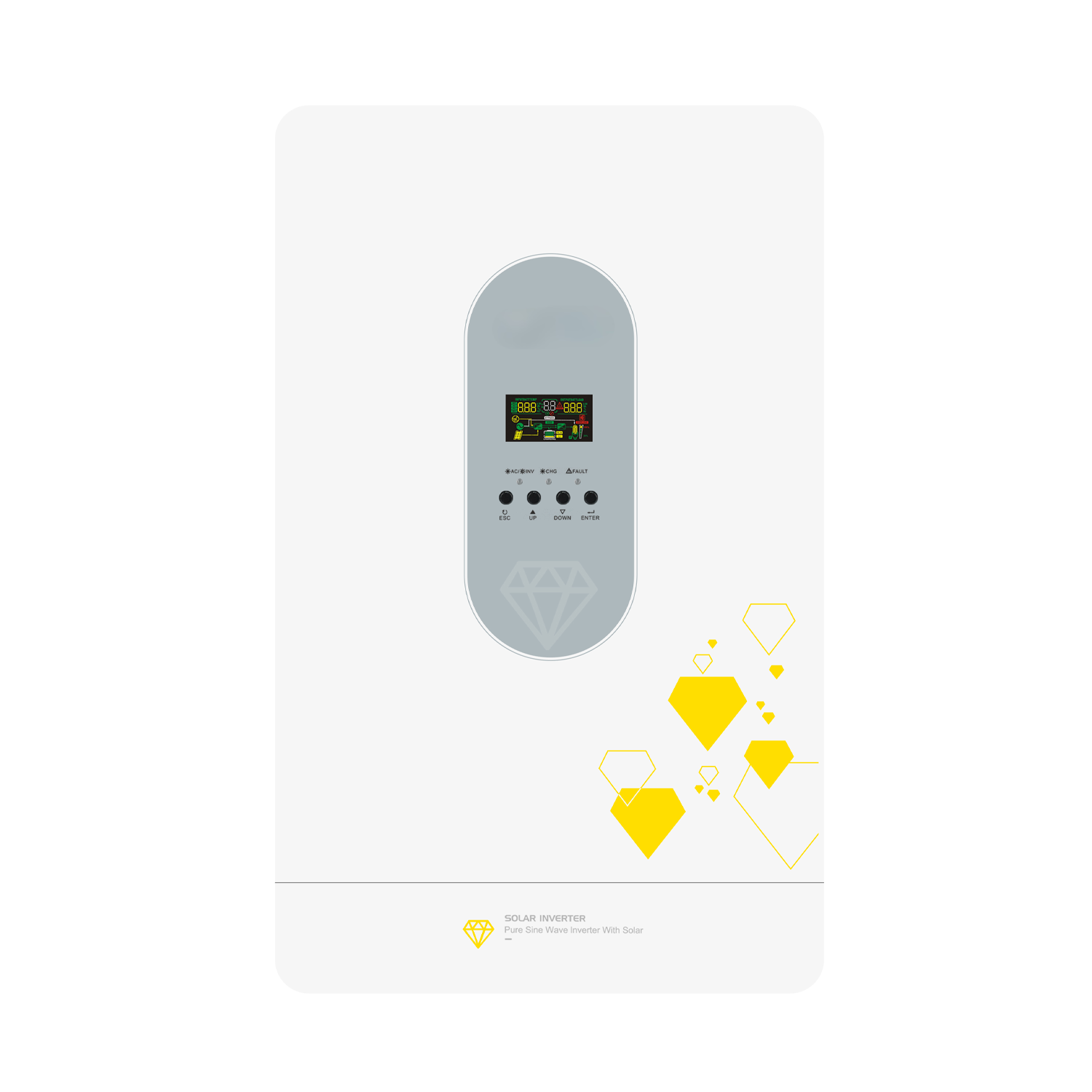

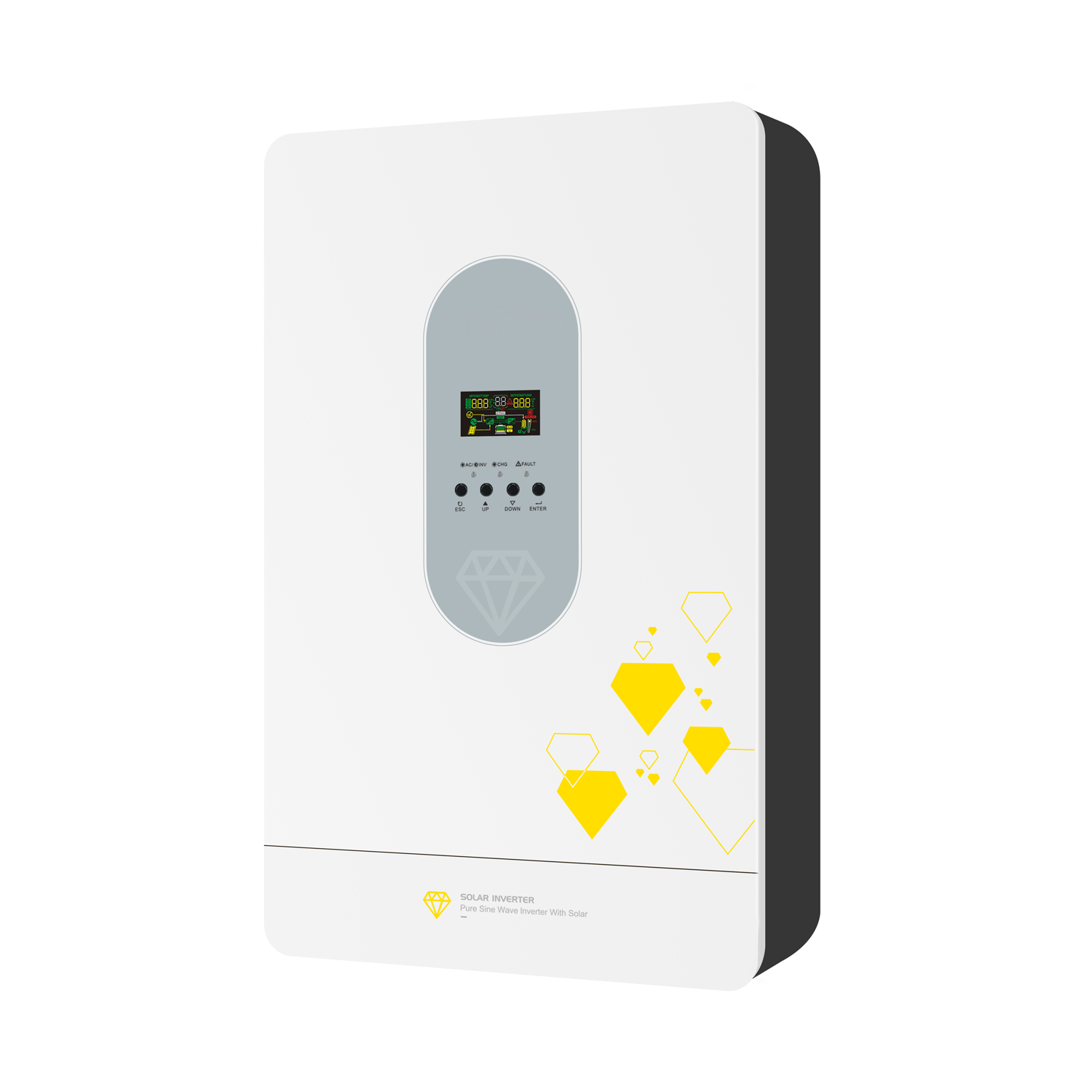

1600W-11000W SOLAR INVERTER ED SERIES E
Hybrid Solar Inverter1. Aesthetic Industrial Design
2. Smart Customization Engine
3. Multi-Protocol Integration
4. Military-Grade Protection
5.Pure sine wave output
Hybrid Solar Inverter
It covers a power range of 1.6kW - 11kW and is suitable for residential, commercial, industrial and industrial photovoltaic systems. It supports wide voltage input (90 - 280VAC) and 50/60Hz self - adaptation, being compatible with global power grids. It adopts MPPT intelligent charge - discharge technology. The maximum photovoltaic input reaches 2×5500W (dual - channel MPPT), and the conversion efficiency is as high as 98%. It has a pure sine wave output, is compatible with sensitive equipment, and supports battery inversion (1.6kW - 11kW) and photovoltaic inversion (4.5kW - 22kW). It is equipped with overload protection (105% - 200% segmented response) and a 10 - 20ms fast - switching function to ensure stable power supply. High - end models (6248EMH/11048EMH) support parallel expansion and are compatible with hybrid power supplies of mains electricity/photovoltaic power/battery power. It can adapt to an environment of - 10~50℃ and operate reliably within an altitude of 4000 meters. With a silent design (≤50dB), it is suitable for residential, outdoor and industrial scenarios.

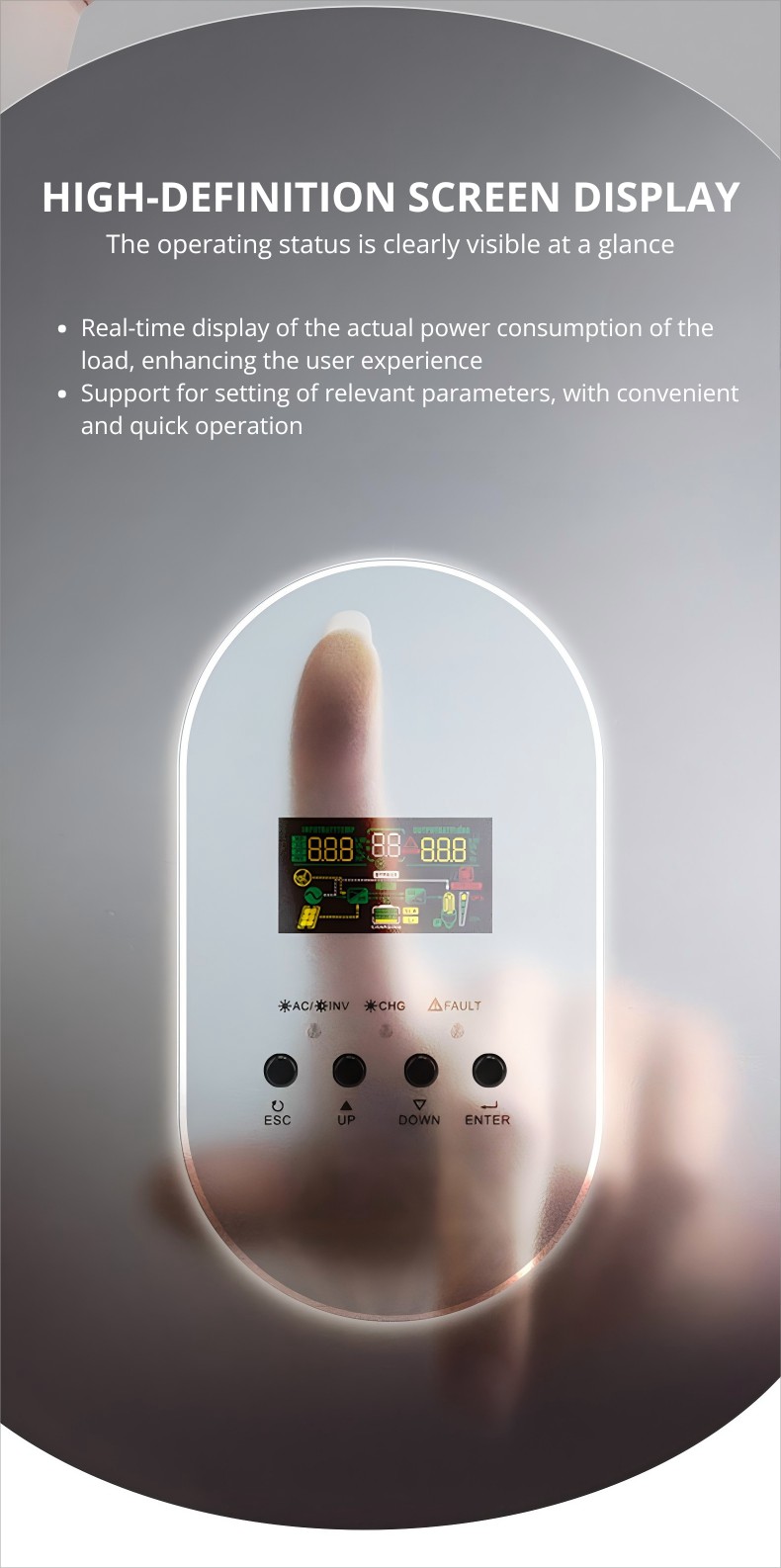

Hybrid solar inverters boast dual PV inputs and dual AC outputs, ensuring the stability of the load. With WIFI Communication, remote monitoring of the inverter's operating status via a terminal device is made possible, guaranteeing the smooth operation of the entire system. These inverters also feature a newly developed LCD display with a Touch button function, enhancing user convenience and exuding a more premium appearance. Boasting a maximum power of up to 1.6kW - 11kW, they are equipped with advanced electronic components and cutting-edge control technology. This enables efficient power conversion and stable power output, meeting higher power demands. Thus, they serve as the perfect solution for off-grid standby power supply for families and small businesses.
- Parameters
It covers a power range of 1.6kW - 11kW and is suitable for residential, commercial, industrial and industrial photovoltaic systems. It supports wide voltage input (90 - 280VAC) and 50/60Hz self - adaptation, being compatible with global power grids. It adopts MPPT intelligent charge - discharge technology. The maximum photovoltaic input reaches 2×5500W (dual - channel MPPT), and the conversion efficiency is as high as 98%. It has a pure sine wave output, is compatible with sensitive equipment, and supports battery inversion (1.6kW - 11kW) and photovoltaic inversion (4.5kW - 22kW). It is equipped with overload protection (105% - 200% segmented response) and a 10 - 20ms fast - switching function to ensure stable power supply. High - end models (6248EMH/11048EMH) support parallel expansion and are compatible with hybrid power supplies of mains electricity/photovoltaic power/battery power. It can adapt to an environment of - 10~50℃ and operate reliably within an altitude of 4000 meters. With a silent design (≤50dB), it is suitable for residential, outdoor and industrial scenarios.
Hybrid solar inverters boast dual PV inputs and dual AC outputs, ensuring the stability of the load. With WIFI Communication, remote monitoring of the inverter's operating status via a terminal device is made possible, guaranteeing the smooth operation of the entire system. These inverters also feature a newly developed LCD display with a Touch button function, enhancing user convenience and exuding a more premium appearance. Boasting a maximum power of up to 1.6kW - 11kW, they are equipped with advanced electronic components and cutting-edge control technology. This enables efficient power conversion and stable power output, meeting higher power demands. Thus, they serve as the perfect solution for off-grid standby power supply for families and small businesses.

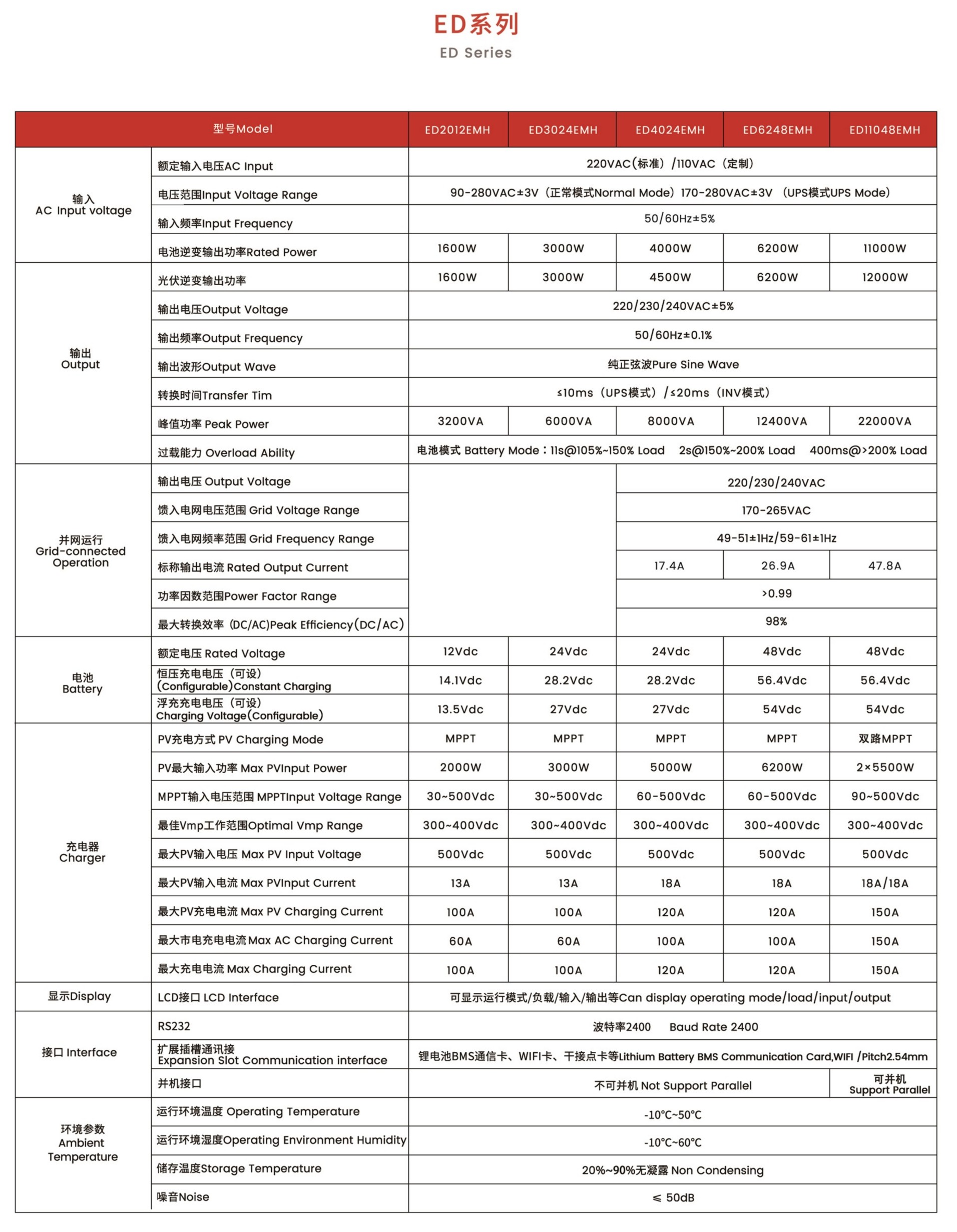

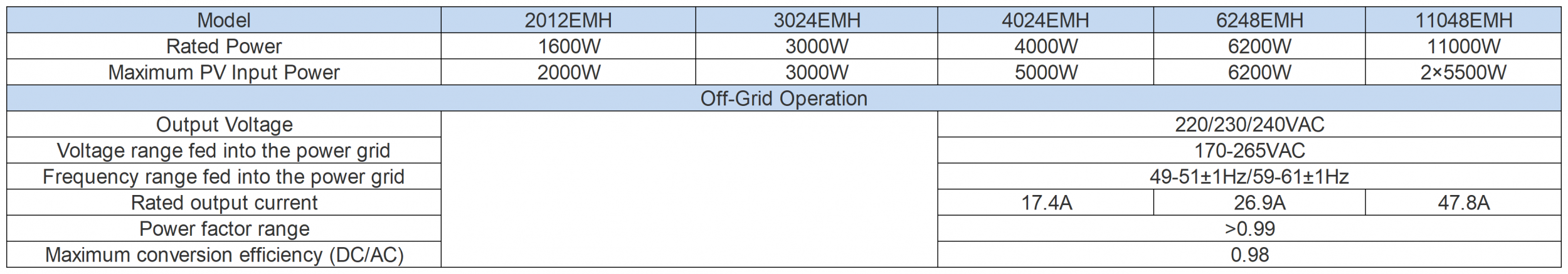

1.6KW-11KW Hybrid Solar Inverter Parameter
Advantages of 1.6KW-11KW Hybrid Solar Inverter
● Rounded corner design, with delicate appearance.
● Multiple parameters can be adjusted to adapt to different occasions.
● Support lithium battery communication, external WIFI, and dry contact for generator self-starting.
● Input short-circuit protection function.
● Pure sine wave output, adaptable to different loads.
